6P1P 6П1П longlife tetrode military vintage tubes soviet ussr NOS SAME DATE
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Model | 6P1P |
| Type | NOS Tube |
| Brand | USSR |
| MPN | Does Not Apply |

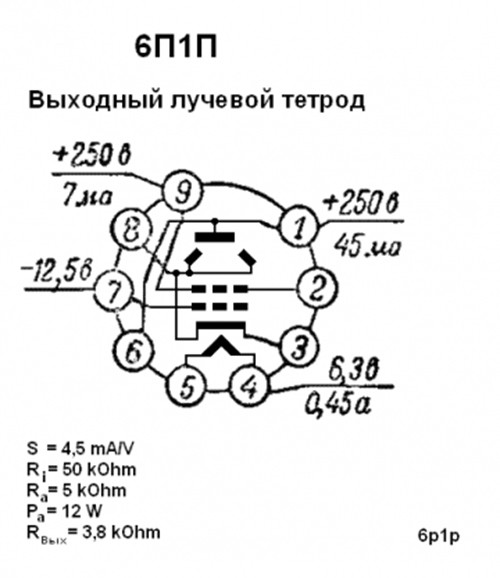

6P1P 6П1П longlife tetrode military vintage tubes soviet ussr NOS SAME DATE Tetrod 6P1P is designed to amplify the power of low frequency. It is used in output single-cycle and two-cycle stages of receivers and low-frequency amplifiers. It can be used in master oscillators, frequency multipliers, television devices and measuring equipment. Oxide indirect oxide cathode. Works in any position. Produced in a glass finger-shaped design. Service life is not less than 500 hours. Rated electrical data The heating voltage, V 6.3 Voltage at the anode, V 250 Voltage on the second grid, V 250 The bias voltage on the first grid, V -12.5 Current of heating, mA 450 + - 40 Current in the anode circuit, mA 45 + - 12 Current in the circuit of the second grid, mA 7 The current in the circuit of the second grid with an alternating voltage on the first grid of 8.8 V and the load resistance in the anode circuit is 5000 Ohm, mA 12 Steepness of the characteristic, mA / V 4.5 Internal resistance, kΩ 50 The coefficient of nonlinear distortion with an output power of 3.8 W,% 7 The output power with an alternating voltage on the first grid is 8.8 V and the load resistance in the anode circuit is 5000 Ω, W 3.8 Output power at a glow voltage of 5.7 V, W not less than 2.5 Optimum resistance of anode load, Ohm 3500 Lot for 1 pc Payment1. We accept PayPal only.2. All major credit cards are accepted through secure payment processor PayPal.3. Payment must be received within 7 business days of auction closing.4. If you have bought multiple items from me, you can send me one payment for all the items instead of paying for them individually. When you click the Pay Now button, eBay will automatically determine if there are other items you have won or purchased from me and will combine them for your review. NOTE:Import duties, taxes and chargers are not included in the item price or shipping charges. These charges are the buyer's responsibility.Please check with your country's customs office to determine what these additional costs will be prior to bidding buying. Shipping1. We ship Worldwide.2. Items will be usually shipped within 2 business days on payment received.3. We use UkrPoshta (Ukranian Post) for all our International deliveries. Once your package passes through customs it will be delivered by your local post office.4. The usual time for a parcel to arrive at its address is 24 business days, but usually it arrives much earlier. Sometimes it can take longer up to 8 weeks. Delivery time lasts approx.1) United States & Canada up to 20 business days.2) Europe: up to 21-24 (except Germany and Italy, delivery time can take up to 1 month)3) Other countries: not more than 30 business days.Asia & Australia: the delivery can take up to 2 months, but usually it arrives much earlier. We appreciate your patience if you haven't received items in 30 days may need more patience by reason of the local delivery system and/or customs. If you are concerned in any way, please feel free to contact us via ebay message instead of leaving negative/neutral feedback or opening a dispute. We will make every effort to fix any problem. ReturnsWe guarantee you complete satisfaction with all our high quality products.If you receive an item you did not order, or if an item you ordered is received damaged or defective, we will refund you the price you paid for it or replace it with identical one.The item should come to the above address within 30 days after you received it. After 30 days we will no longer be responsible and the item won't be taken back.Item for returning must have the original tags and packing, otherwise it won't be accepted.
