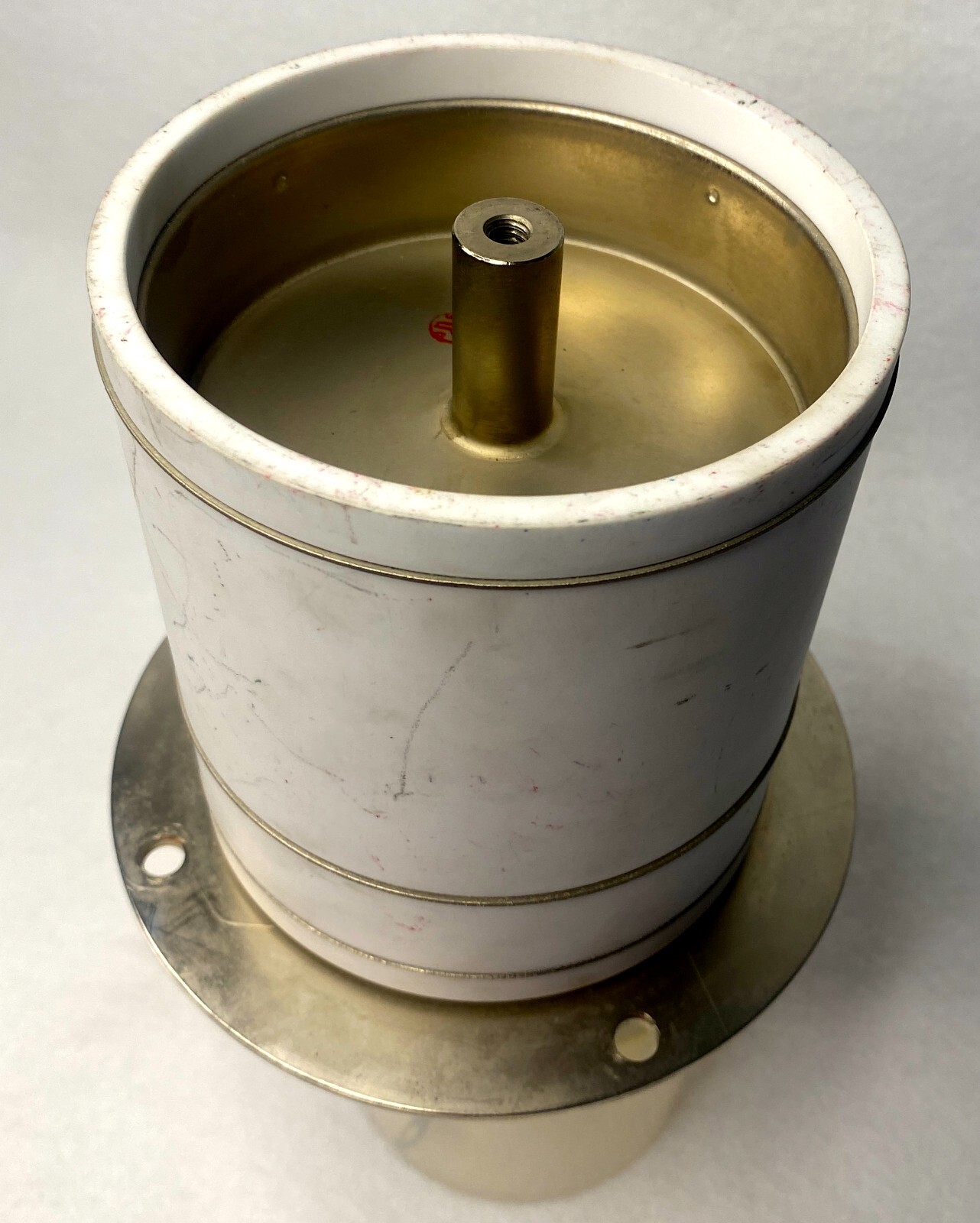

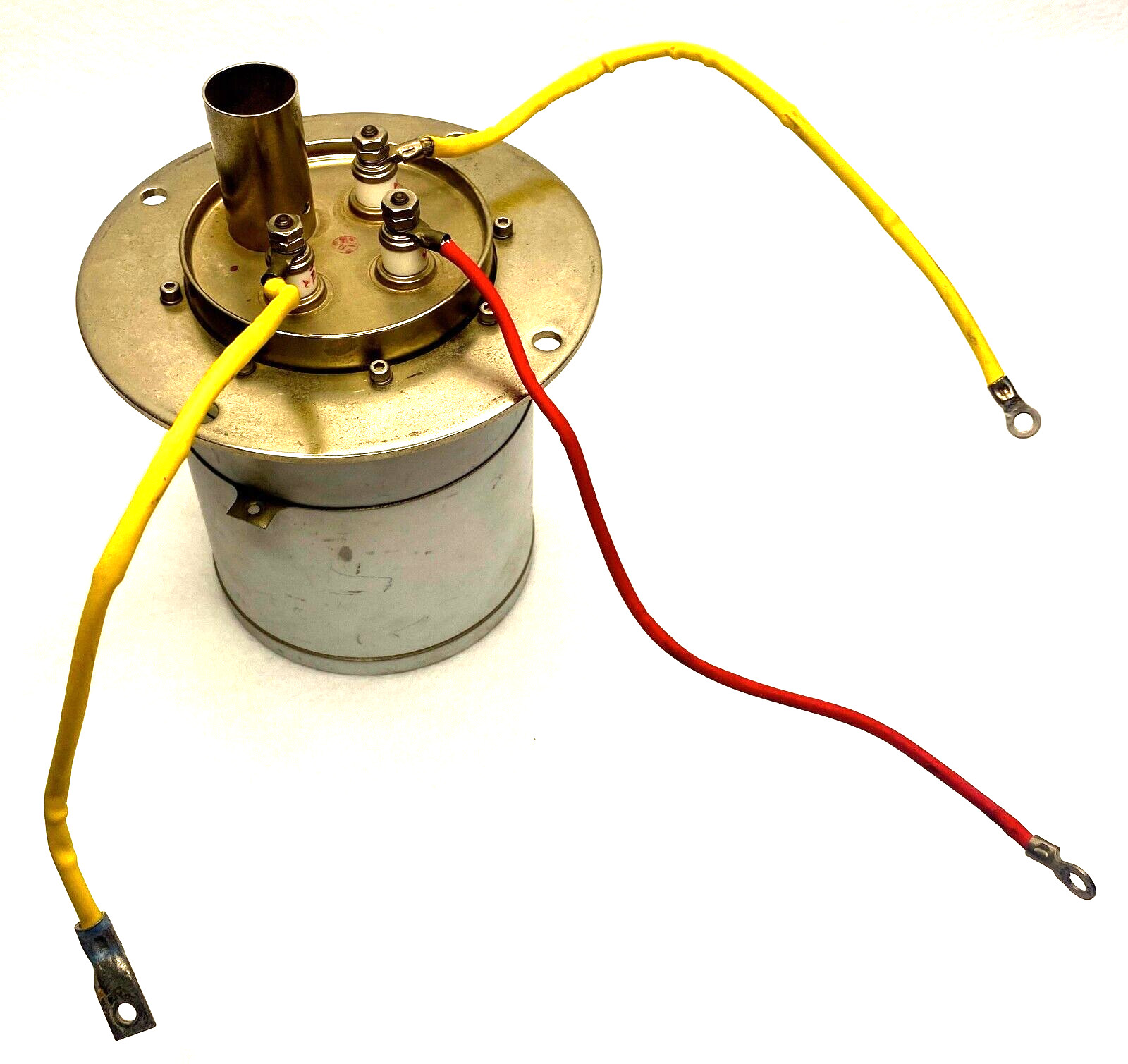

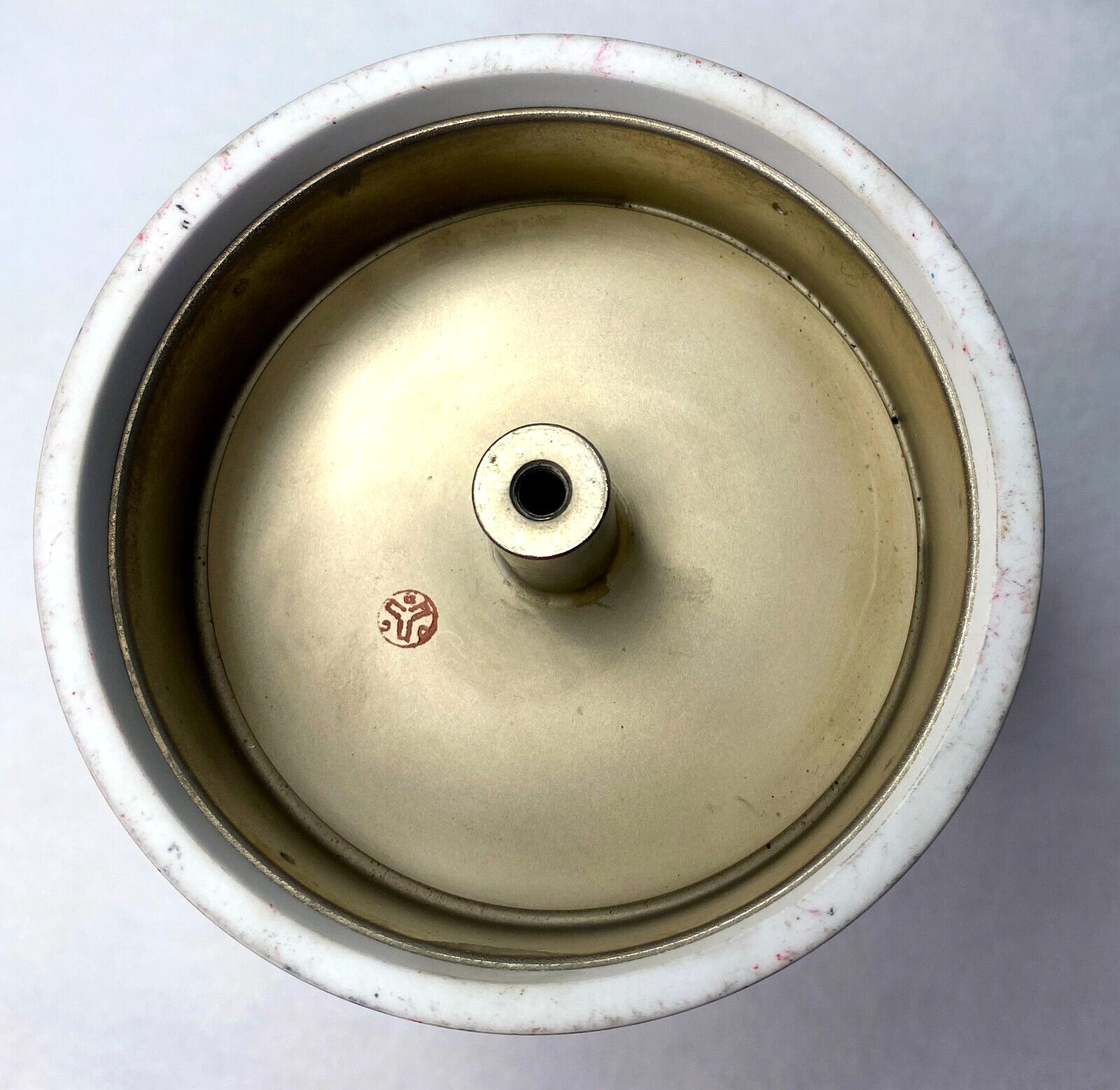

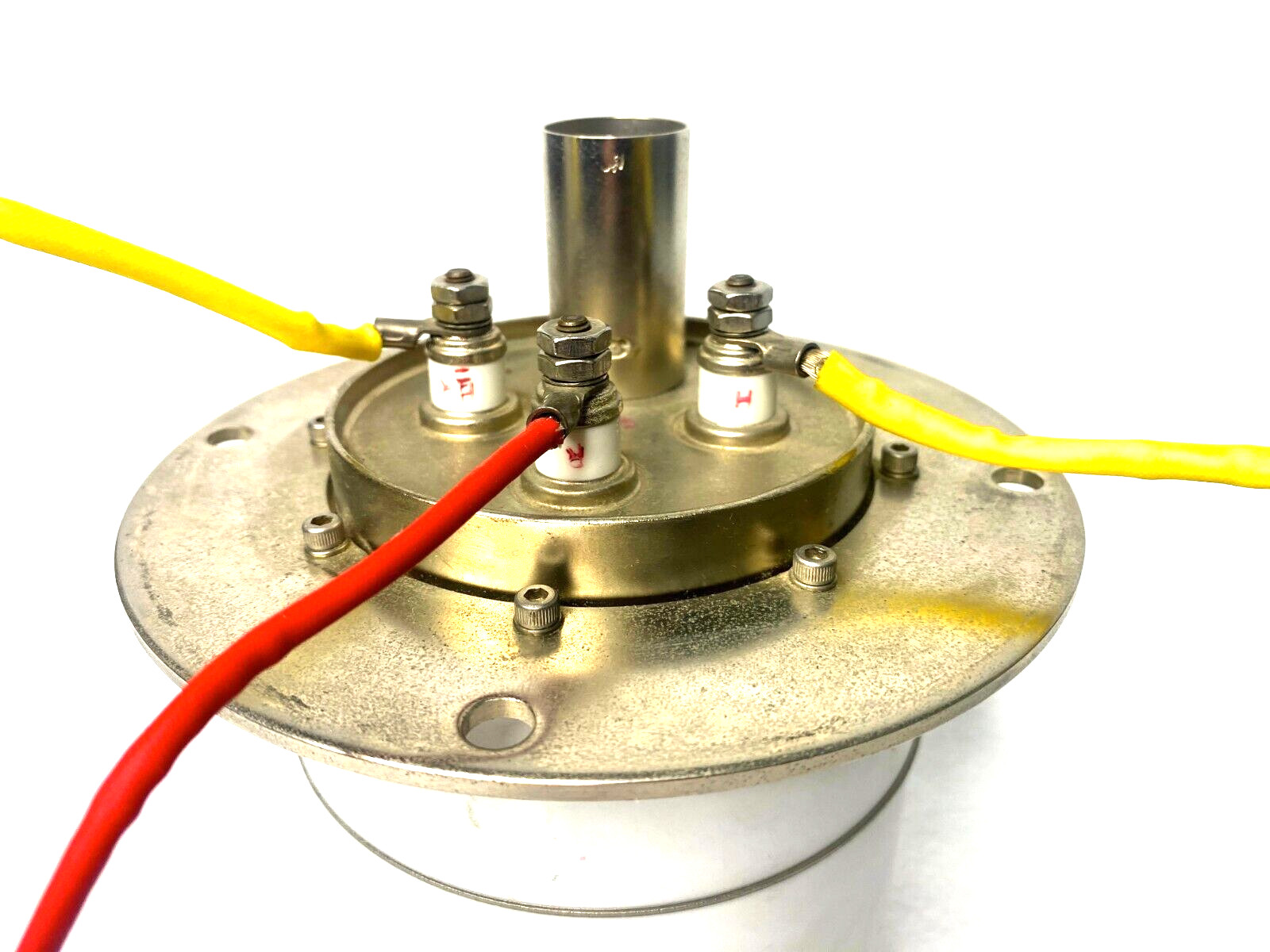

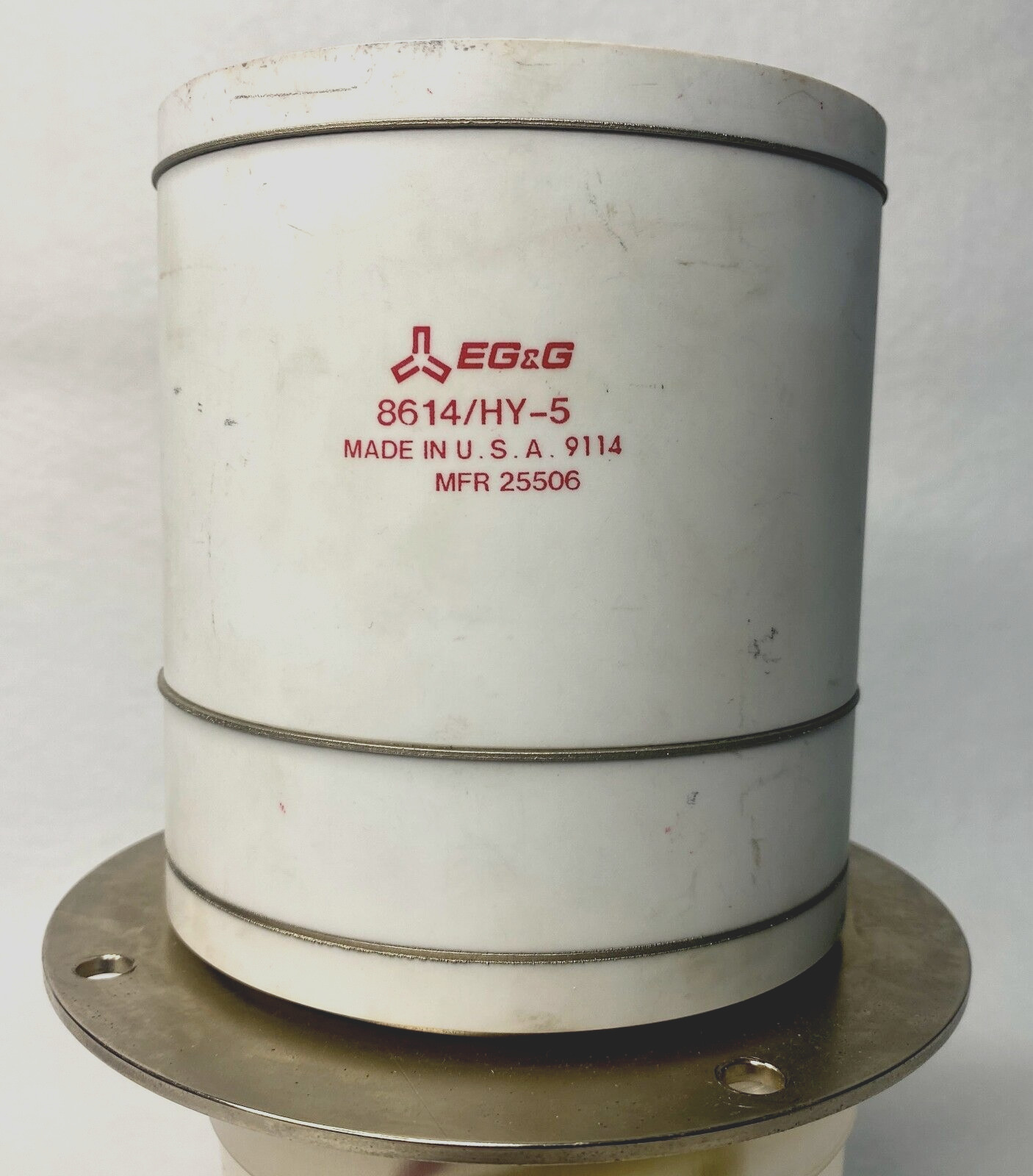

8614 HY-5 Hydrogen Thyratron Tube EG&G 5 kA @40 KV Fast Acting Hi Voltage Switch
USD 497.79 USD
Specifications
| Country Of Origin | United States |
| Reservoir Heater V/A: | 4.5/11 |
| Peak Anode Current Ib (a): | 5000 |
| RMS Anode Current Lp (Aac): | 125 |
| Plate Dissipation Factor Pb (x 10 9): | 160 |
| 6 And 1/4" Wide At Bottom | 4.5" Wide at Top |
| Manufacturer Part Number | 25506 |
| MPN | 25506 |
| Impedance Of Grid Circuits G (Max): | 100 |
| Type | Thyratron |
| Peak Forward Grid Voltage Egy (Min): | 1300 |
| Model | 8614 |
| 1 5/8" Length Of Extruded Metal | 6.75 Pounds |
| Seated Height X Tube Width (Inches): | 5 x 4.5 |
| Cathode Heater V/A: | 6.3/30 |
| EIA Type And Comments: | 8614 |

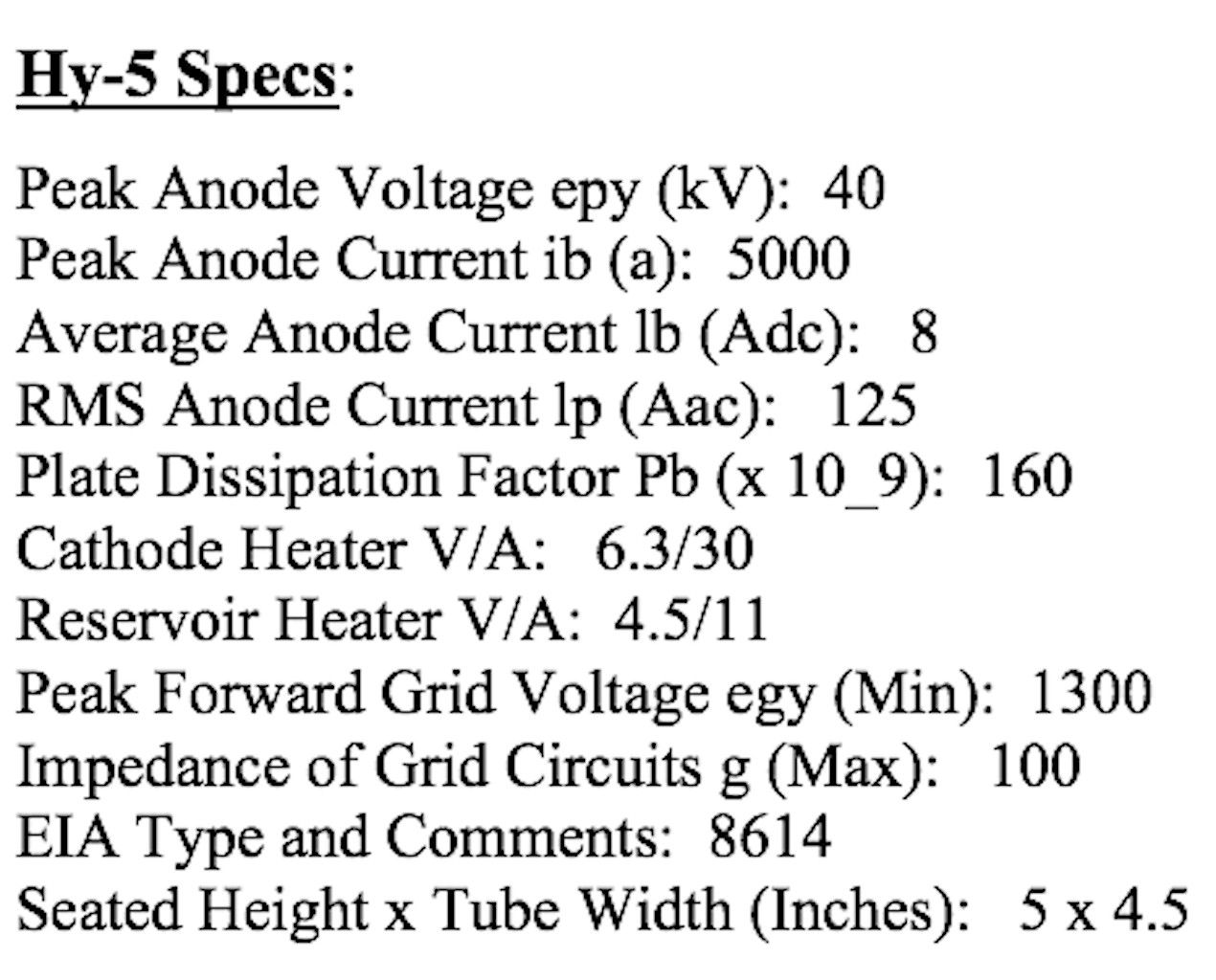

Plate Dissipation Factor Pb (x 10_9): 160. Impedance of Grid Circuits g (Max): 100. Peak Anode Current ib (a): 5000. Average Anode Current lb (Adc): 8. RMS Anode Current lp (Aac): 125.
